Saving, Opening, and Downloading Models

In SketchUp for Web, your models are saved to and stored in Trimble Connect, a web-based storage and collaboration service. This is different from the desktop version of SketchUp, but there are several advantages to using Trimble Connect as a web-based file system (as opposed to the file system in your computer). Here's how managing files works between SketchUp for Web and Trimble Connect:

Saving files

After you've created a new model, one of the first things you may want to do is save it to Trimble Connect. Follow these steps:

  1. After creating a new model, click either the 'Untitled' file name or the 'Save' command in the upper left of your screen. In either case, a Trimble Connect dialog will open.

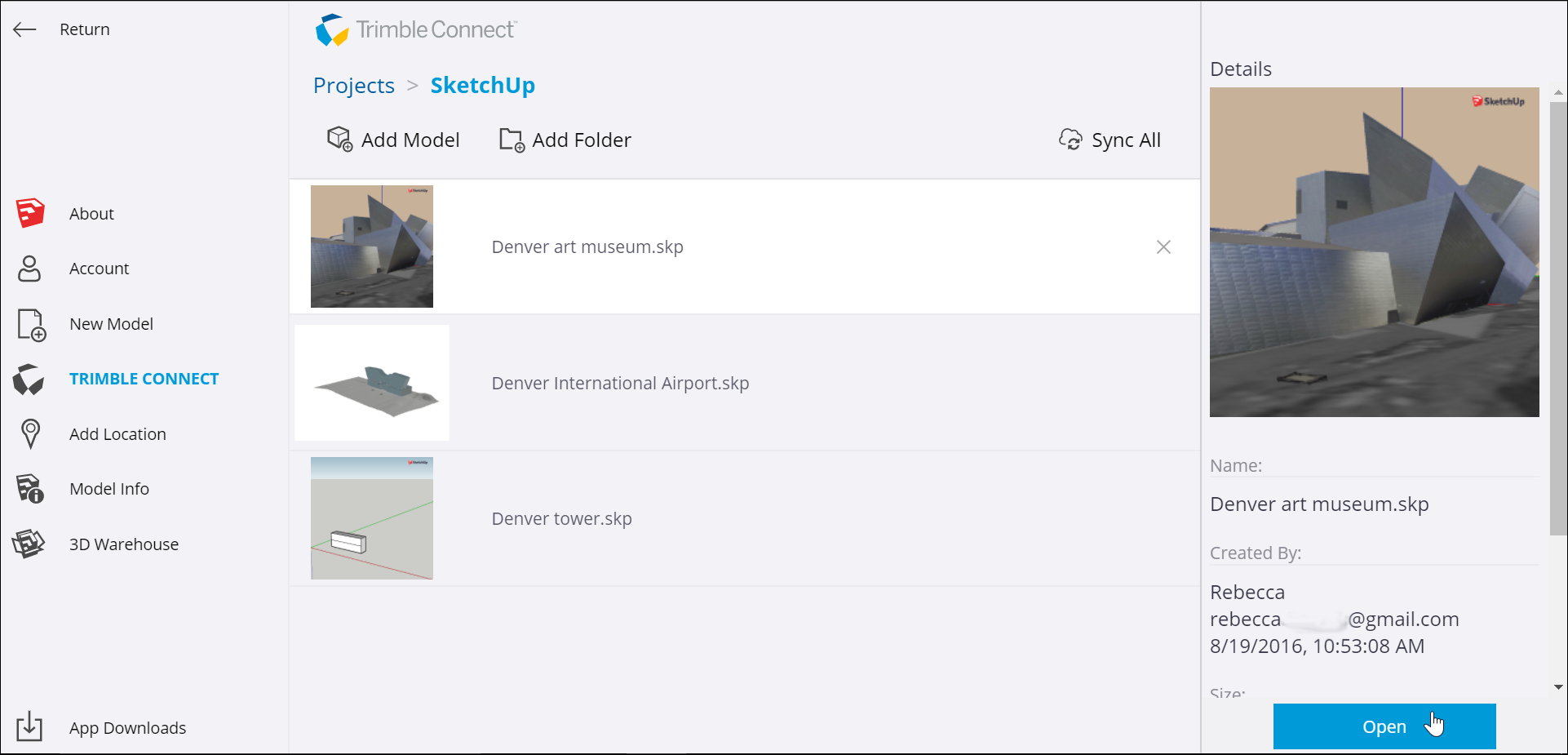

    Opening a model in SketchUp for Web
  2. In the Trimble Connect dialog, first, choose a Project to save your model in. With a Free subscription, you have access to one project, simply called 'SketchUp.' With paid subscriptions, you can create more projects at web.connect.trimble.com. Within a project, you can click the “Add folder” button to organize your work within a project.
  3. When you've picked a location in Trimble Connect, click the Save Here button.

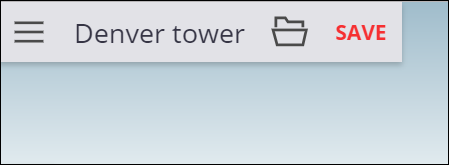

  4. Saving a Model in SketchUp for Web

Now, as you continue modeling, SketchUp for Web will auto-save your model every few minutes. You can also trigger a manual save by clicking the Save command in the top left of your screen. It's always a good idea to do a manual save before closing SketchUp.

A Free subscription includes access to both SketchUp for Web and Trimble Connect Personal, a free service that provides you with one project folder, 10 GB of file storage to put in that project, and the ability to invite up to 5 people to collaborate in your project. Paid SketchUp subscribers are upgraded to Trimble Connect Business which offers unlimited storage, projects, and collaborators.

Opening files and recent files

When you launch SketchUp for Web, you'll have the option to open a model from the Home tab (using the Open button or by choosing a recent file), or the Trimble Connect tab. While modeling, you can return to the Home tab or Trimble Connect tab, by clicking the 'hamburger' menu icon in the very top left of your screen. You can also choose the 'Open' command in the File operations menu (Opening a model in SketchUp for Web).

Tip: You can also open SKP model files stored on your computer in the Home tab.

Recent files

If you choose to open a recent file -- a model that you recently opened or saved in SketchUp for Web -- simply double-click its listing in the Home tab (or single-click its file name). This is probably the fastest way to resume working on a model saved in Trimble Connect.

Viewing Recent Files in Sketchup for Web

Your list of recent files is actually cached (or stored) in the browser that you SketchUp for Web with. If you clear your browser cache, use another browser, or use another device, you won't see your recent files. If this happens, don't worry, just use the Trimble Connect tab to find and open your file.

Open files from Trimble Connect

When you choose to Open a file from Trimble Connect, you'll need to navigate to Project where you saved your file -- probably the SketchUp folder if you have a Free subscription -- to find your file. When you do, just double-click it's listing or single-click its name.

If you have a lot of files stored in your Project, you may find it useful to change from the default thumbnail view to list view (). In list view, you can sort your file list by name, last modified date, or file size. This can make it a bit easier to find things in a large project.

In either list view or thumbnail view, each model has a file options menu. From here, you can choose to open, delete, view file details, or view revision history. These options are also available in the Home tab.

File Options in Trimble Connect

Revision History

Every time you save a model -- and every time SketchUp for Web auto-saves -- a new version of your model called a revision, is sent to Trimble Connect. So in effect, there is a back-up file that you can always restore. This is very helpful if your model becomes corrupted, if you add geometry or components that make your model difficult to operate, or if you want to revert back to an earlier, simpler version of your model. Here's how it works:

To access revision history for a model, navigate to that model in either the Home tab (if it's a recently accessed file) or in Trimble Connect. Open the file options menu (the three-dot icon) and click 'History'. This will reveal a list of revisions for your file on the right side of your screen.

Revision History of a Model

When you mouseover a certain revision in the list, you'll see an action button: Open revision.

If you choose to open a revision, this older version of your file will load into the modeler. In this state, any changes you make in this older version will be temporary until you choose to save your progress. When you are reviewing a revision, you can choose to save your revision as a copy of the original model (with a different name) by using the Save or Save As commands.

Tip: If you choose the same name as the original file, you will be effectively restoring your revision. Your model will retain its full revision history, including the last saved version before you clicked save.

You can also choose to restore a revision using the Restore command in the blue status flag that displays on the left-hand side of the modeling window.

Restore a model from Revision History

Auto-save and temporary back-up files

In SketchUp for Web, there are several mechanisms for ensuring that your modeling work is resilient to problems like file corruption, browser crashes, and Internet connectivity.

Auto-save

By default, every five minutes, SketchUp for Web will auto-save your modeling progress. If you keep an eye on the Save button in the upper-left, you may notice this auto-save behavior. When an auto-save happens, your file is saved in two important ways: First, a temporary, local back-up of your file is saved in your web browser cache. Second, if you have already saved your model to Trimble Connect, auto-save will send your file to Connect as a new revision. (The same thing will happen anytime you manually click the Save command).

Temporary back-up file

Recovery of an Unsaved Model

In addition to updating your Trimble Connect file record, auto-save also updates the temporary back-up file of your model stored in your web browser cache. So, if you haven't yet saved a model to Trimble Connect, your modeling progress is saved in this temporary back-up file after the first auto-save. Still, it's a good idea to save your file when you start modeling.

If you exit SketchUp for Web without saving -- or if your web browser crashes -- the next time you open SketchUp, the app will prompt you that a recovered file has been found and give you the option to open this last saved temporary back-up.

Similarly, if you lose Internet connectivity while modeling and close SketchUp for Web before you regain connectivity, you should still be prompted to recover your back-up file. If you notice that you have lost connectivity while using SketchUp, it's a good idea to download your model as a back-up file.

When you are prompted to load a recovered file, the model will load but will not be associated with the file you've saved in Trimble Connect. If you want to recover the progress, use the Save As command to overwrite your saved file in Trimble Connect. Your last saved version is always available in Trimble Connect revision history, just in case you aren't sure what to do with a recovered file.

Opening from and downloading to your computer

If you prefer to work with SketchUp files stored locally on your computer, this is possible in SketchUp for Web.

Opening local files

To open SketchUp model stored on your computer, follow these steps:

  1. Go to the Home tab, by clicking the 'hamburger' menu icon in the very top left of your screen. (The Home tab is also the first screen that loads when you start up SketchUp for Web).
  2. Click the Open button, and select 'My computer'
  3. Navigate and select to your desired file. Click 'Open'

With this method, your model will load into SketchUp for Web as a temporary file. Until you click 'Save', your file will not be uploaded to Trimble Connect. If you don't want to save your model in Connect, follow the instructions below to download your model back to your device.

Tip: Another way to add models is to go to the Trimble Connect tab and simply drag/drop a file from your computer. You can also use the Add model button. Either way, your file will upload and display as selected. From here, all your modeling progress on this file will be saved in Trimble Connect. You can download the file back to your device at any time.

Downloading files

If you need a copy of your SketchUp file -- or prefer to save and store your files locally -- you can always download the model you are working on to your computer. Follow these steps:

  1. Make sure the model you want to download is loaded in the modeling window.
  2. Open the file operations menu at the top of your screen
  3. Select the 'Download' command. You'll be prompted to choose a SKP version to download. If you plan to re-upload your model to SketchUp for Web, you can choose any version. If you want to use your file in a desktop version of SketchUp, you'll want to pick a version that corresponds to that desktop version.
  4. Click OK to download your model.
